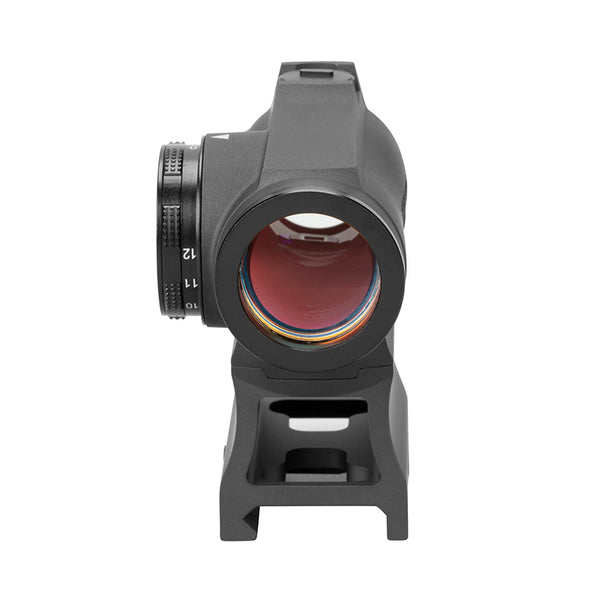

Holosun HS403R Micro Red Dot Sight w/ Rotary Switch – Black

Holosun HS403R Micro Red Dot Sight w/ Rotary Switch – Black

The Holosun HS403R Micro Red Dot Sight is a 20mm micro optical sight designed for rifle and carbine applications. Features include our new Rotary Switch, 12 brightness settings, Holosun’s Super LED with up to 50k hour battery life, and a 2 MOA Dot.  Includes lower 1/3 co-witness and low profile mounts.

Features:

• Rotary control for faster operation and visual brightness indicator
• Up to 100,000 Hours Battery Life (Setting 6)
• 2 MOA Dot Reticle
• 12 Brightness Setting: 10 DL & 2 NV Compatible
• Parallax-free with unlimited eye relief

Technology:

Super LED

Holosun has been a leader in laser and LED technology for many years. Holosun Super LEDs provide a versatile range of intensity for the brightest environments down to no-light situations. High luminous efficiency, the human eye is more sensitive and comfortable to gold and green(high visual function). Not only does the Super Green LED give the user an option for those who have difficulty seeing in the red color spectrum, but it also gives greater power efficiency when using the optic in high brightness settings.

Multilayer Coatings

Holosun red dot sights and magnifiers are manufactured using optical glass with multilayer coatings applied to facilitate maximum light transmission and wear resistance while reducing glare.

Little Phase Difference
High Reflectivity

Specifications:

OPTICAL DATA

• Reticle                                    2 MOA Dot
• Light Wavelength                 650nm
• Reticle Color                         Red
• Parallax Free                        Yes
• Unlimited Eye Relief            Yes
• Magnification                       1x
• Multi-Coatings                     Yes

ELECTRONIC DATA

• Power Source                      Battery
• Battery Type                        CR2032
• Battery Life (Hours)           100 000
• Brightness Setting             10 DL&2 NV

PHYSICAL DATA

• Window Size                        20mm Diameter
• Dimension (in)                    2.75×1.43×1.62
• Weight (oz)                          3.53

MECHANICAL DATA

• Housing Material                6061 T6 Aluminum
• Surface Finish                     MAO
• Adjustment per Click        0.5 MOA
• W&E Travel Range             ±50 MOA

ENVIRONMENT DATA

• Storage Temperature        -40℃~70℃
• Working Temperature       -30℃~60℃
• Submersion                         IP67
• Vibration                               1000G
