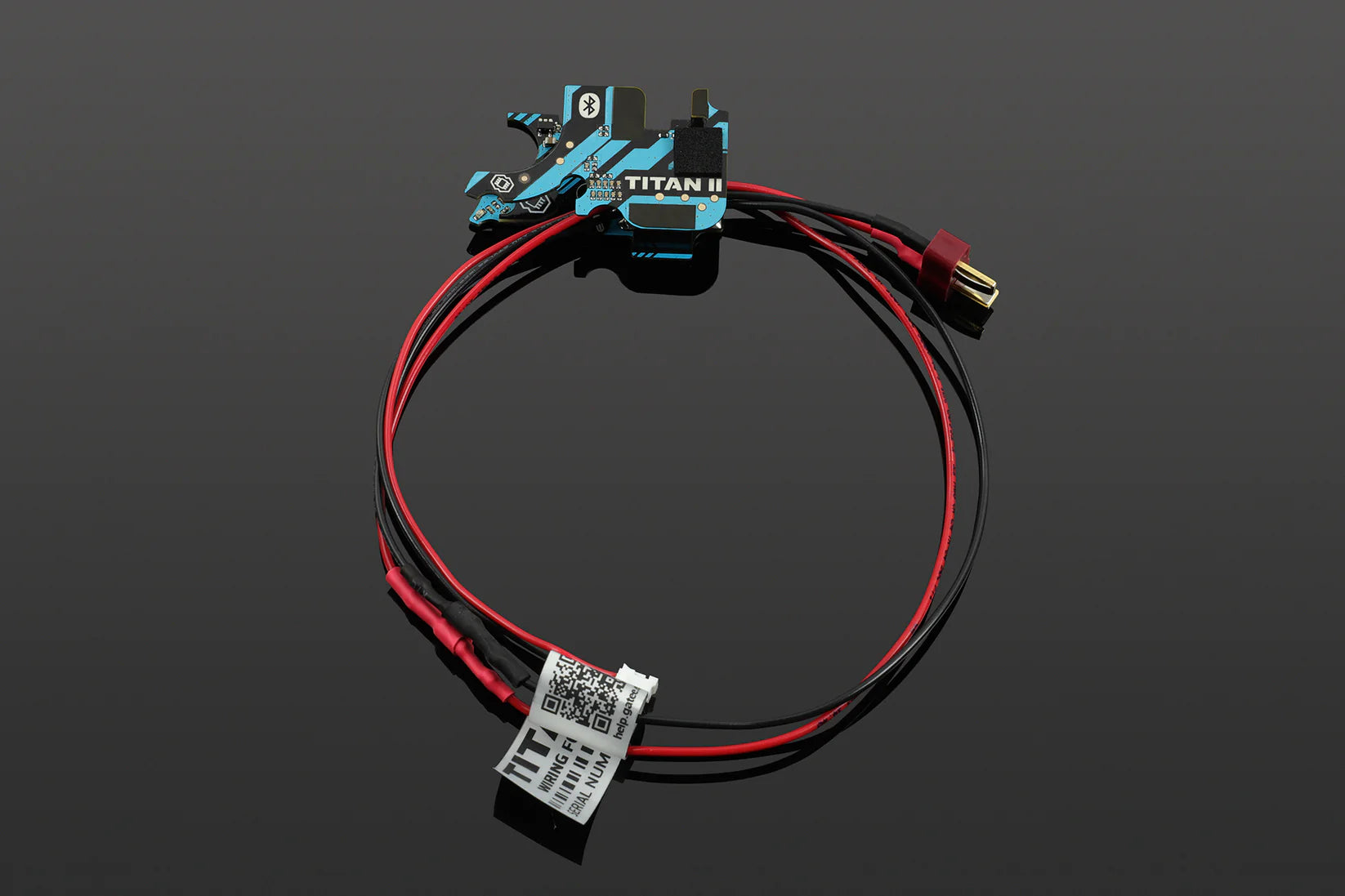

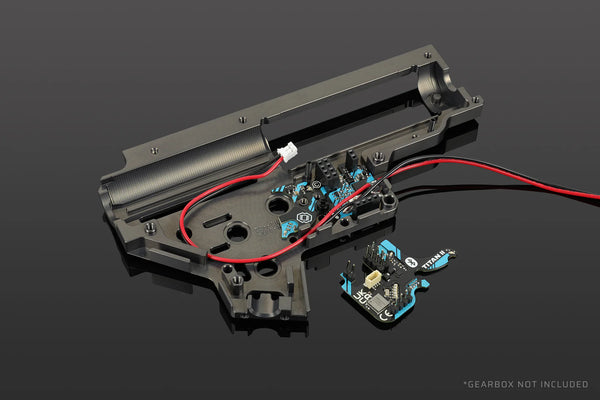

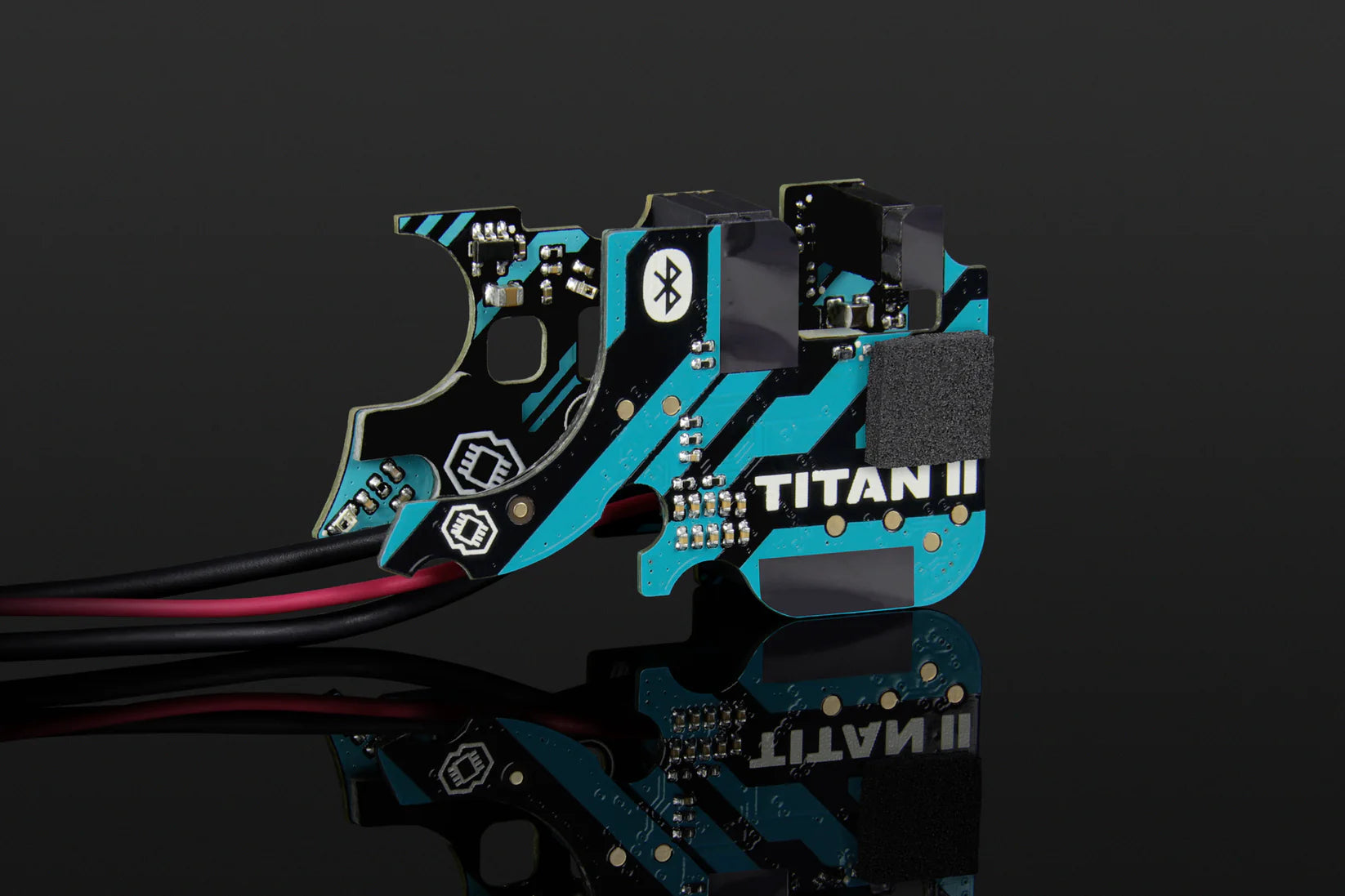

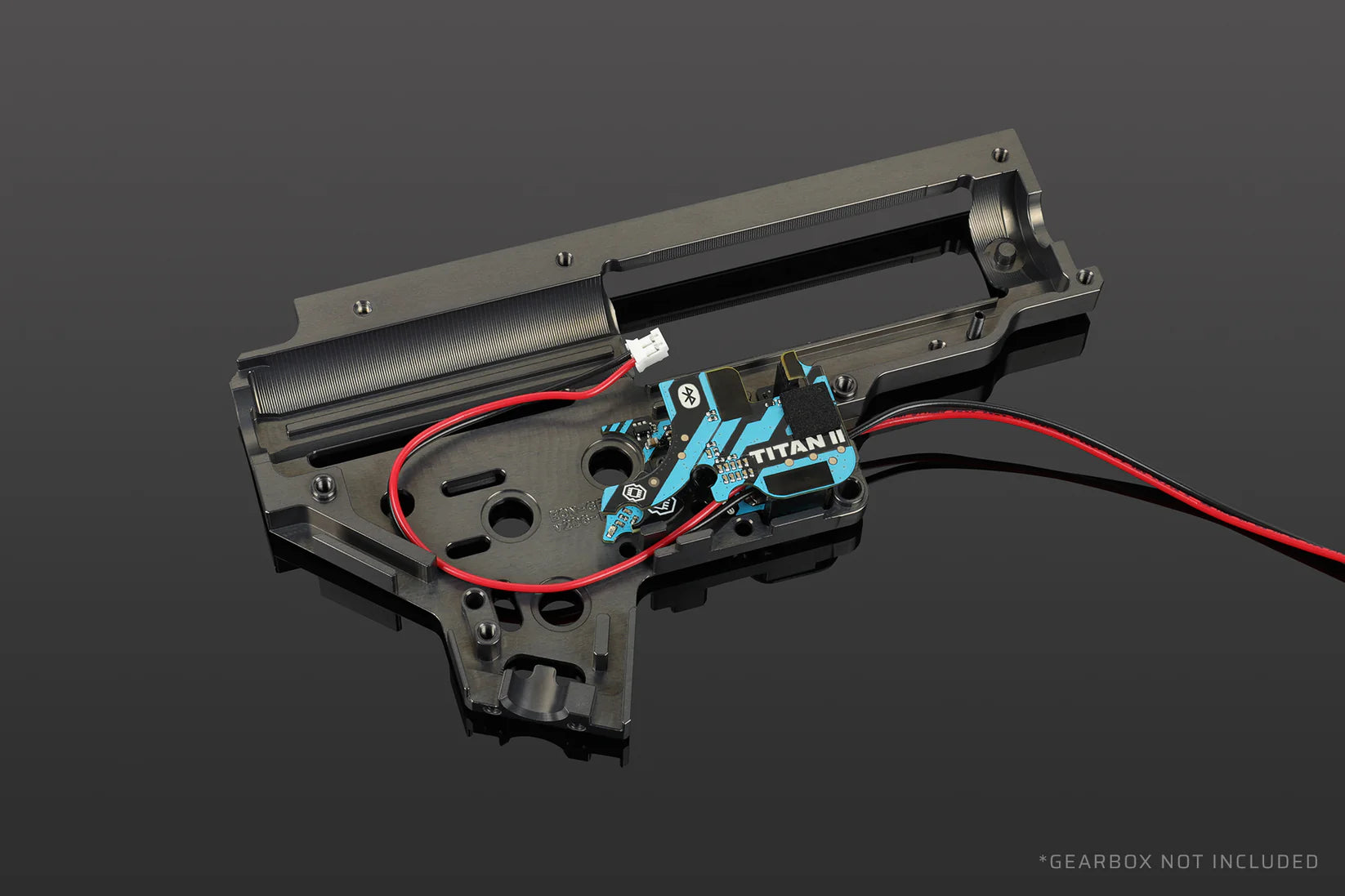

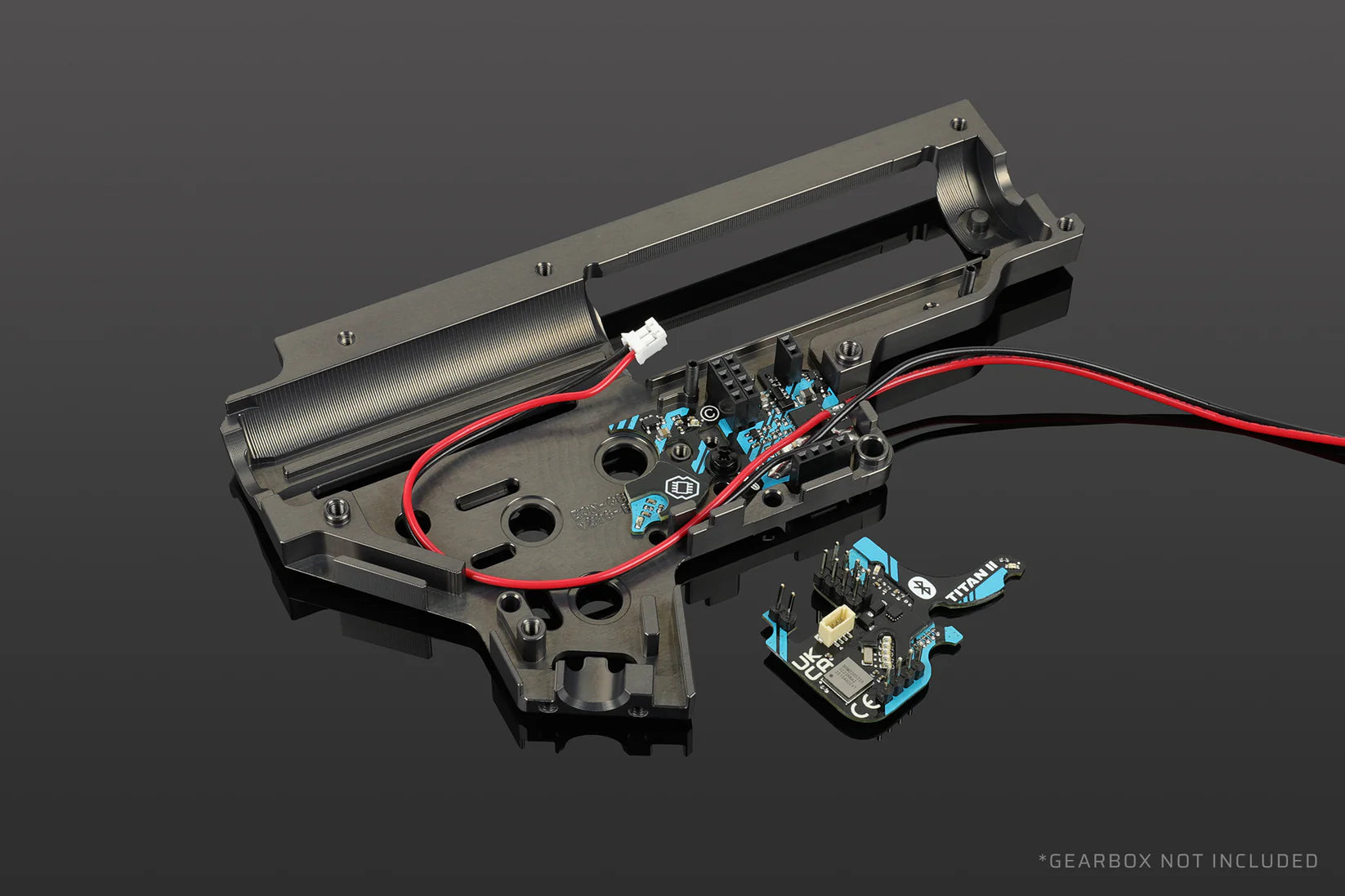

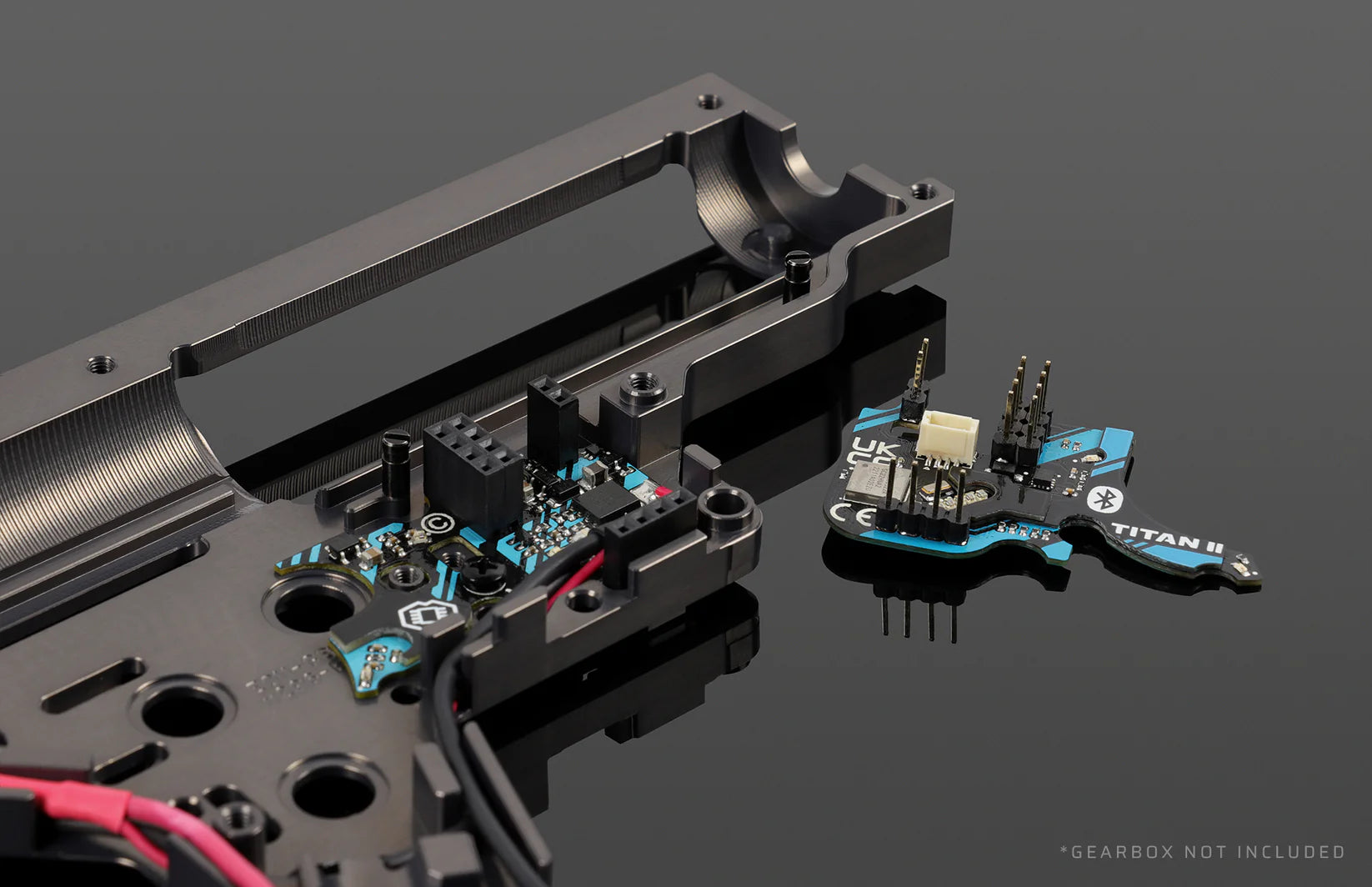

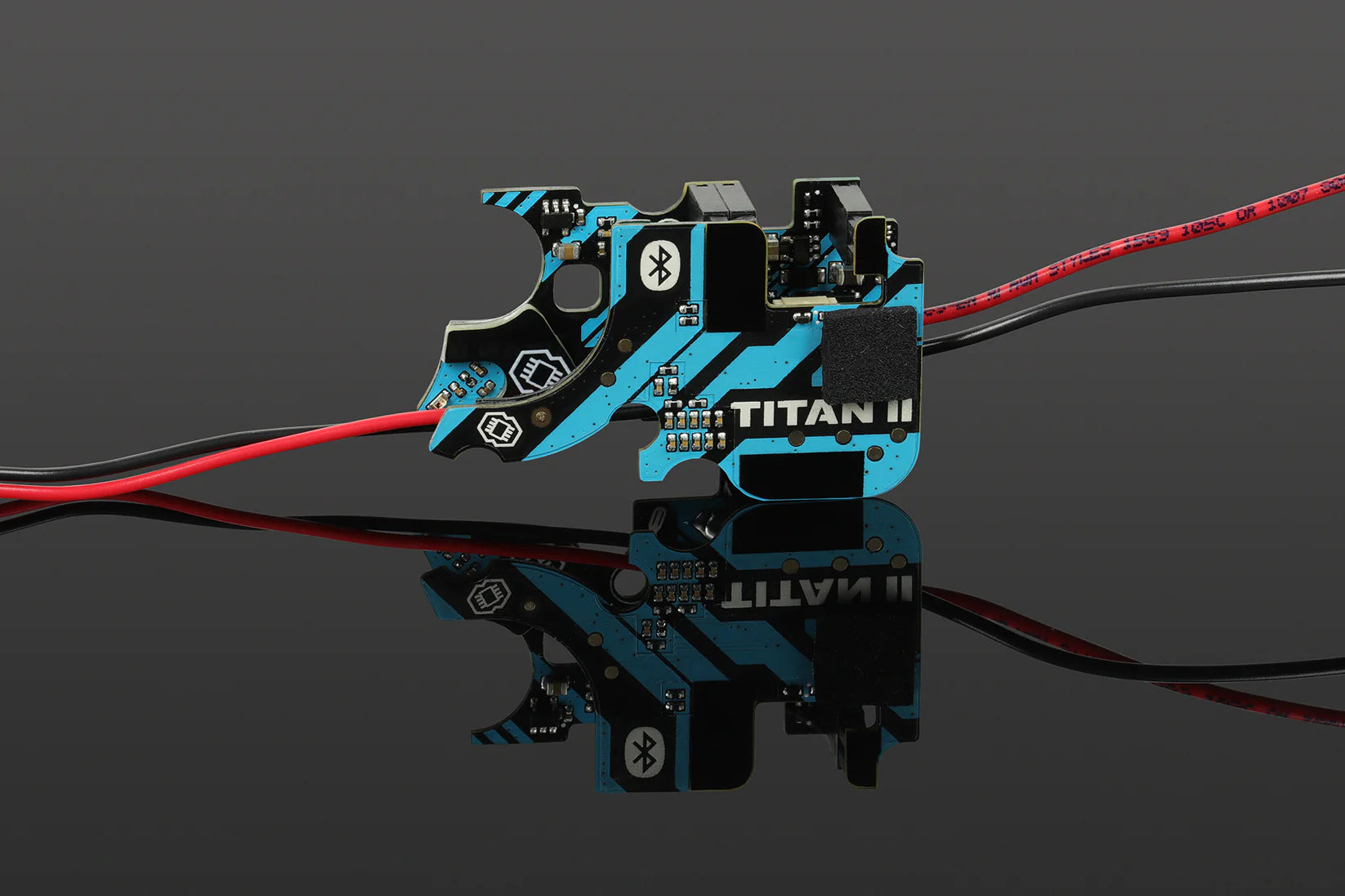

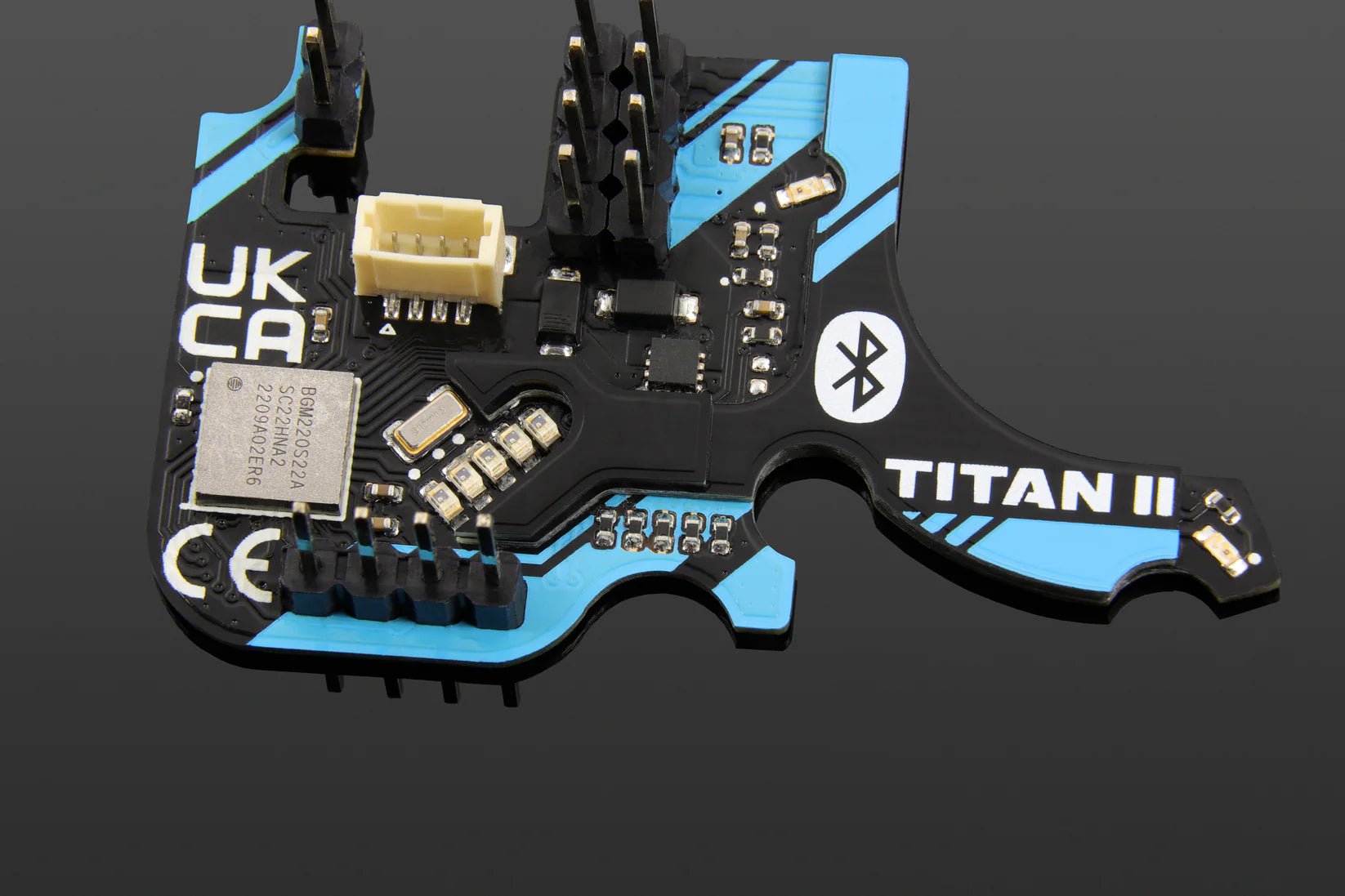

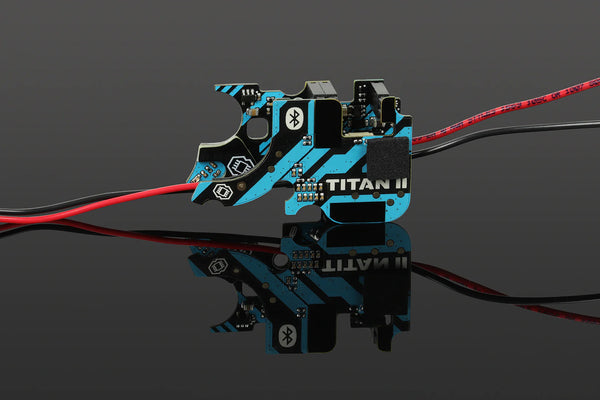

GATE Titan II Bluetooth Programable ETU For V2 Gearbox – Expert Level

The brand new TITAN II Bluetooth® for V2 GB is the GATE flagship Electronic Trigger Unit (ETU). Built-in Bluetooth 5.2 technology gives you direct access to TITAN II Bluetooth® settings, AEG telemetry, and the ability to use your smartwatch, STATUS, and other future devices of the GATE Ecosystem. The innovative gear sensor not only counts gears, but also, as the first one in the world, determines the direction of gear rotation, offering you the most precise cycle control in AEGs. The mind-blowing optical trigger sensor allows you to set the hair trigger with ludicrous precision: even 50 sensitivity levels for the first millimeter of trigger movement, keeping TITAN V2 sensor advantages. TITAN II Bluetooth® is equipped with a multifunctional port ready for connecting additional accessories such as the bolt catch and magazine sensors, tracer in the hop-up chamber, and more.

Features:

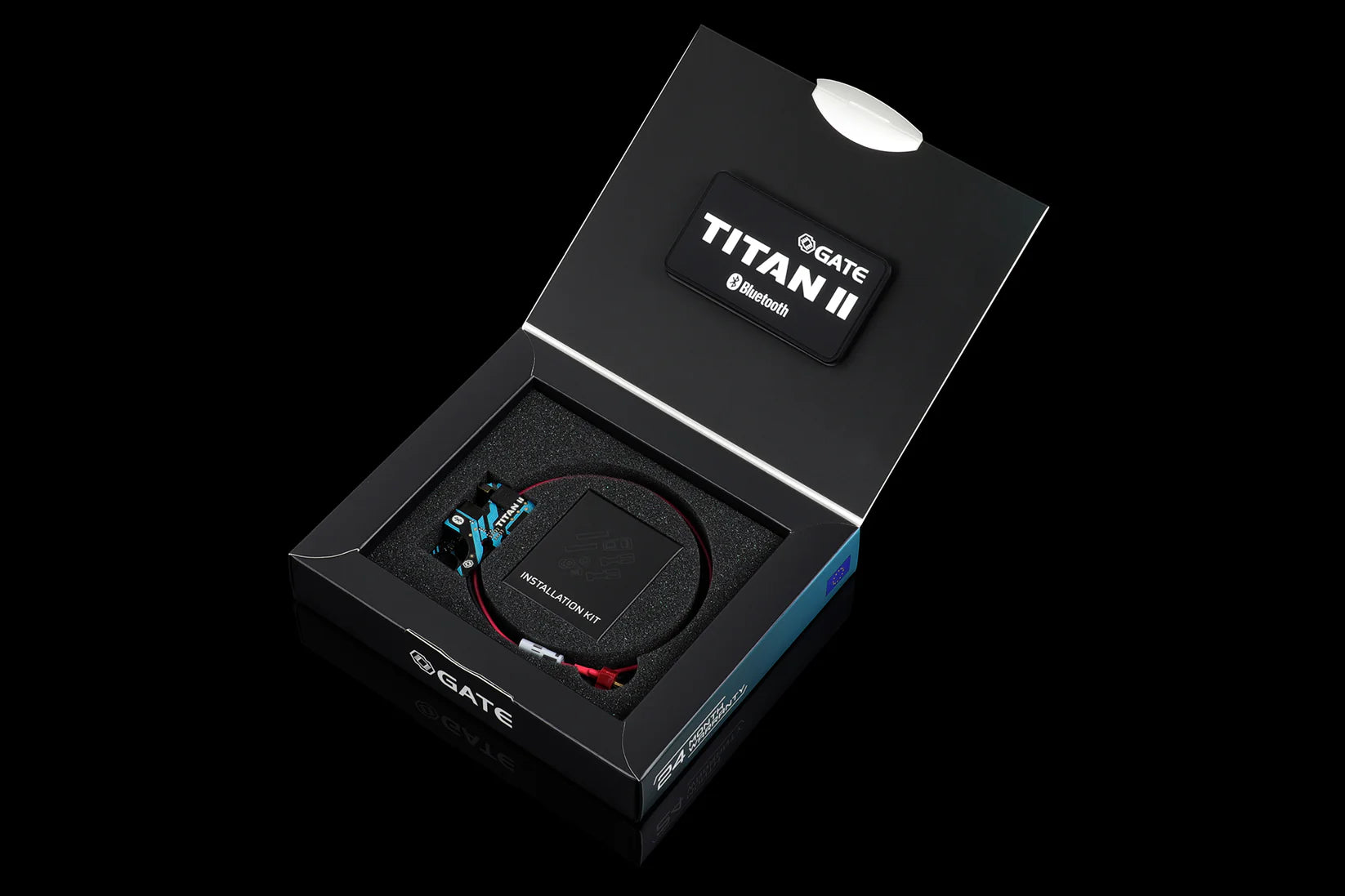

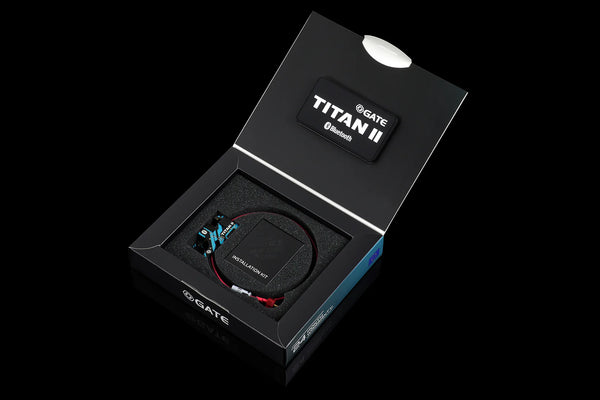

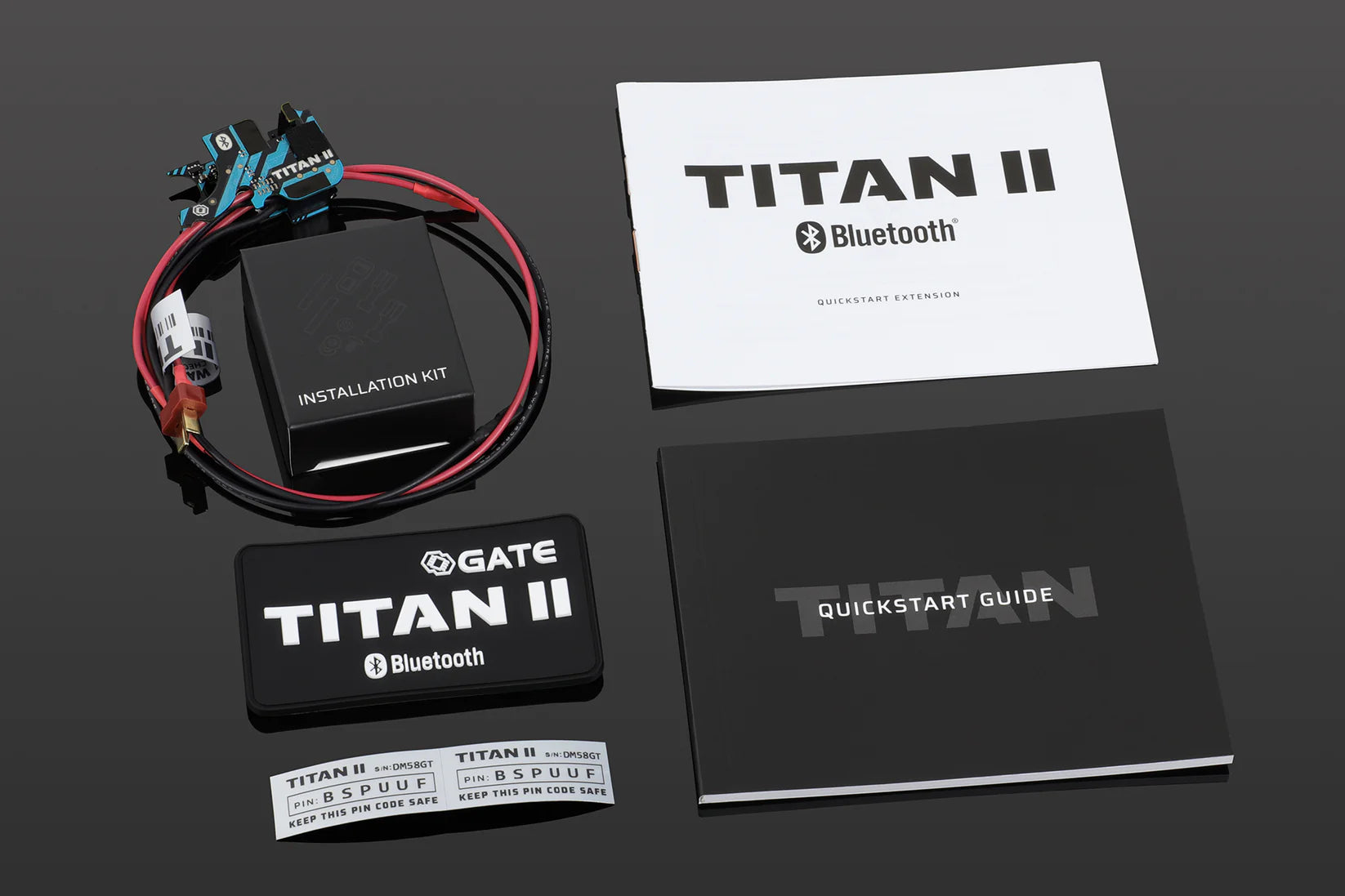

·        Everything you need out-of-the-box

·        Quantum Trigger included in the kit

·        No need to use USB-Link for installation and configuration

·        New noise-resistant trigger detection algorithm

·        Hair-trigger out-of-the box. Even 60 trigger sensitivities for the 1st mm (0.04 in) of movement

·        Additional protection against interferences thanks to multi-layer PCB with EMC shield

·        Automatic Pre-Cocking: LOW / MID / HIGH

·        Trigger sensitivity adjustment without any limitation

·        Improved cycle detection

·        Active brake adjustment: Adaptive / 100% / 60% / Brushless motor / OFF

·        New selector mode: SAFE - SEMI - BINARY instead of SAFE - BINARY - AUTO

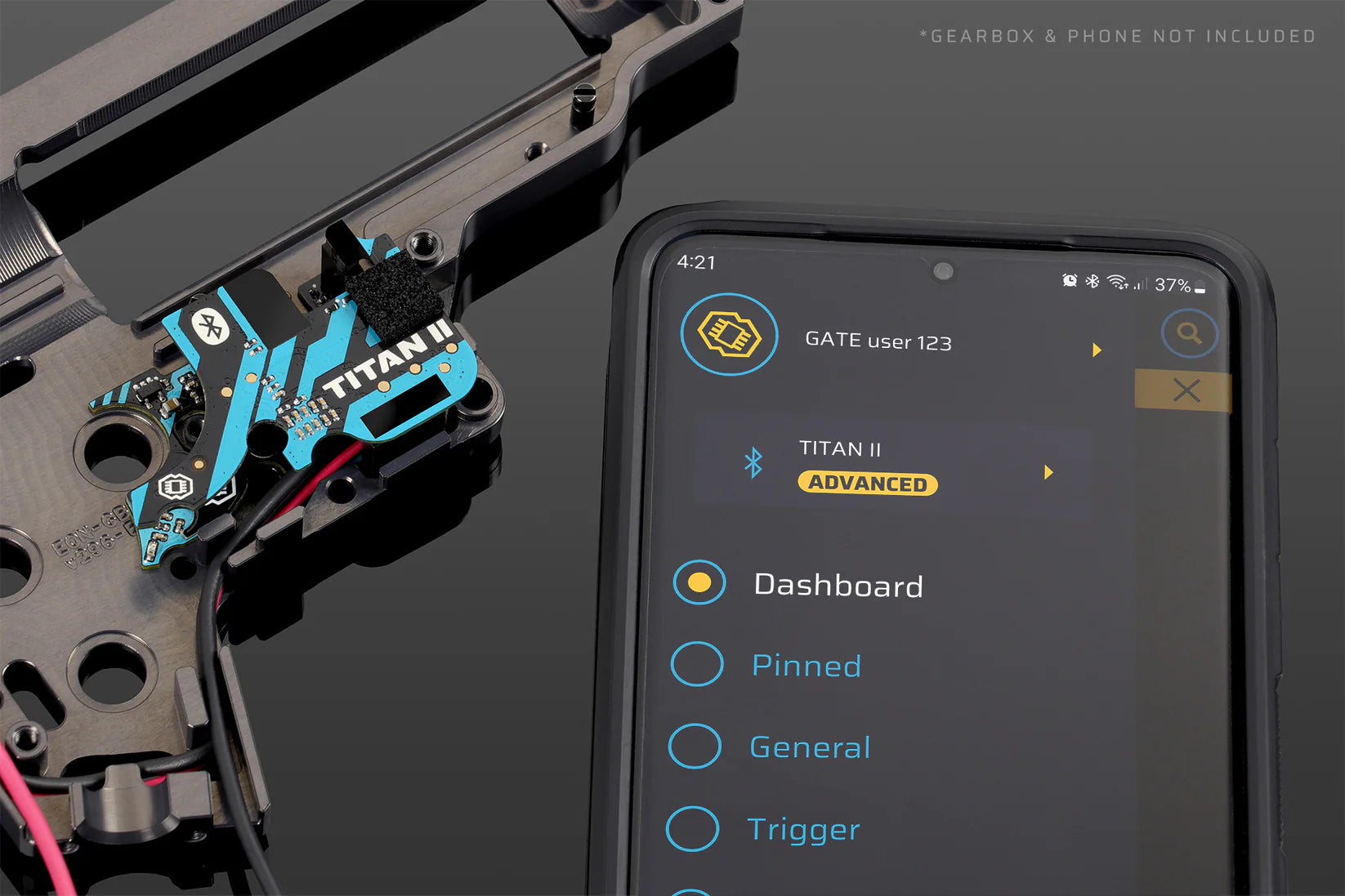

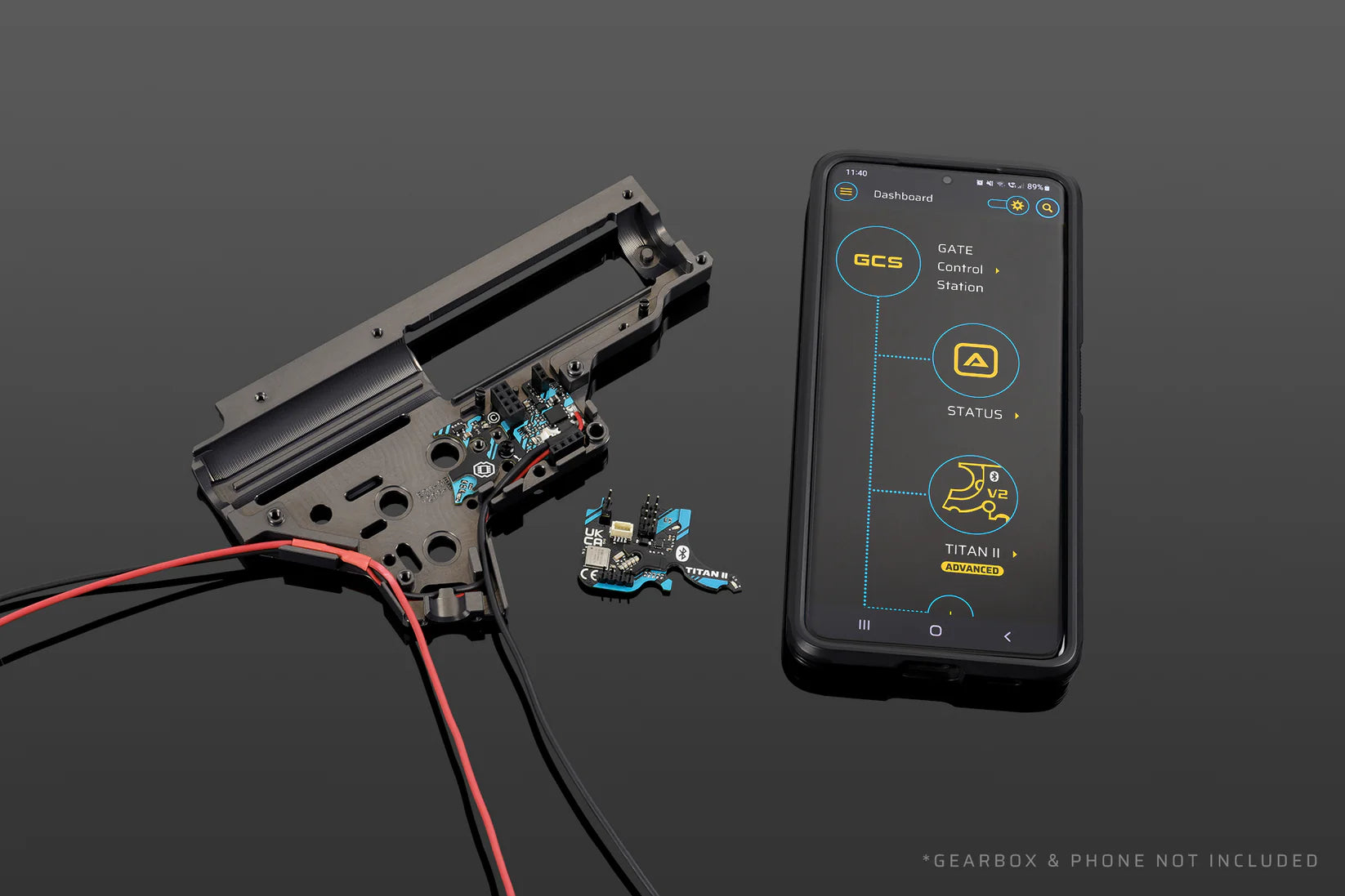

·        GCS App allows for making firmware updates via the internet, which enables quick applying of improvements

Specifications:

·        Supply Voltage Range: 3.75-17 VDC

·        Rated Current: 30 A

·        Current Consumption: 27 mA

·        Low Power Mode: 100 µA

·        Connectivity: Bluetooth® 5.2 Low Energy

·        Dimensions (Length x Width x Thickness): 47.2 mm x 28.9 mm x 14.5 mm

·        Finished Product Weight: 28.2 g

·        Operating Temperature Range: min. -15° C, max. +50° C

·        Relative Humidity: ≤ 80%

·        Programmable power supply with eFuse: Connect additional accessories such as hop-up chamber tracer and electric magazines
